The JINSYS IoT (Internet of Things) platform is an industrial internet platform developed for intelligent manufacturing. Fast configuration, simple connectivity, customizable data integration and unified outputs help manufacturers quickly establish an industrial internet system. It integrates common PLC brands and models, CNC systems and industrial robot systems, supporting multiple data interfaces, acquisition protocols and commissioning methods. Built-in interfaces connect to SAP, ERP, MES, WMS, WCS and other business systems. On-premises private deployment is supported.

Feature highlights

  • Low-code development

    A visual configuration interface lets users set up business components through intuitive drag-and-drop operations.

  • Simple connectivity

    Integrated automation device drivers, Modbus TCP/UDP, Socket communications and MQTT services enable configurable data connections for automation equipment and instruments.

  • Data integration

    Combine equipment, process, alarm, energy consumption and production system data for in-depth analysis and forecasting to inform production and operational decisions.

Core functions

Low-code IoT platform configuration

JINSYS low-code technology lets business users quickly connect gateways, acquisition services, controllers and other IoT components through straightforward visual configuration.

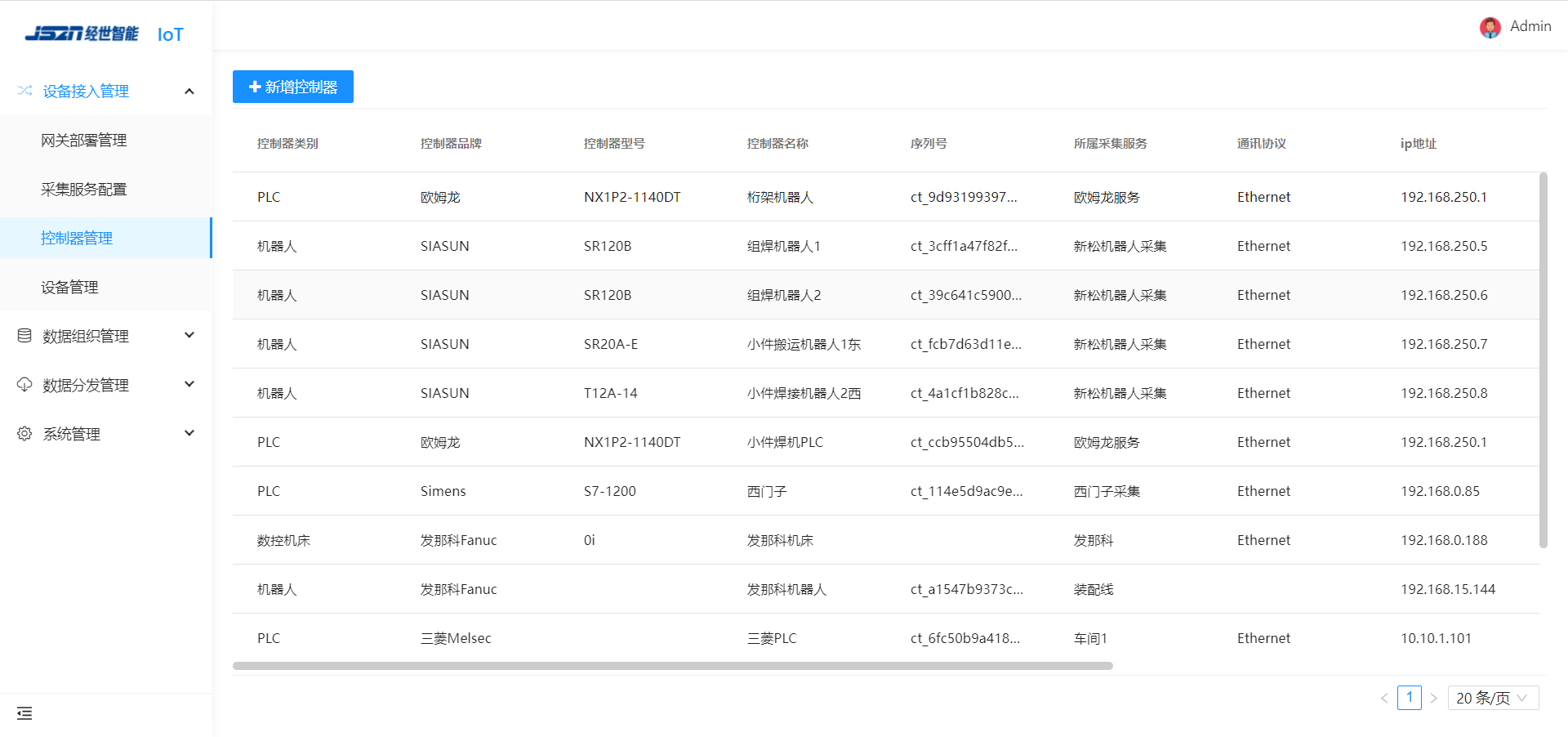

IoT — Controller Management

Connect equipment

  • Gateway deployment
  • Acquisition services
  • Controllers
  • Devices

Controller fields

  • Type
  • Brand
  • Model
  • Name
  • Serial number
  • Acquisition service
  • Protocol
  • IP address

PLC examples

  • Omron NX1P2-1140DT
  • Siemens S7-1200
  • Mitsubishi MELSEC

Robot and CNC examples

  • SIASUN SR120B / SR20A-E / T12A-14
  • FANUC 0i
  • Ethernet connections
View original interfaceIoT — Controller Management — original product interface

Automated data acquisition management

Integrates common PLCs, CNC systems, industrial robot systems and positioning systems. Multiple interfaces, protocols and commissioning methods enable data acquisition through intelligent gateways.

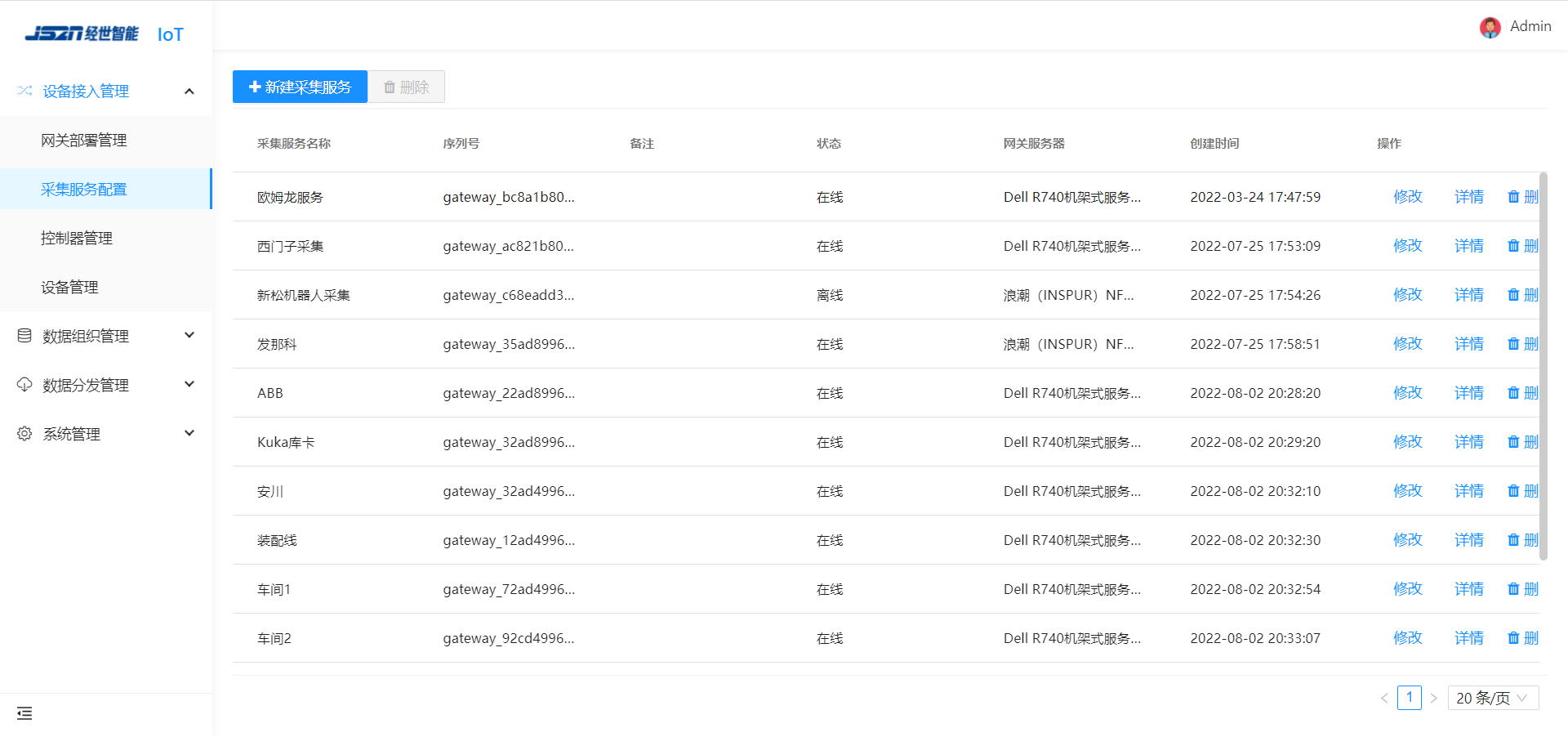

IoT — Data Acquisition Services

Manage services

  • Create
  • Edit
  • Details
  • Delete

Service records

  • Name
  • Serial number
  • Notes
  • Online / offline status
  • Gateway server
  • Creation time

Connected services

  • Omron
  • Siemens
  • SIASUN
  • FANUC
  • ABB
  • KUKA
  • Yaskawa

Production areas

  • Assembly line
  • Workshop 1
  • Workshop 2
View original interfaceIoT — Data Acquisition Services — original product interface

Data integration management

Store business system and production line data, support digital twin visualization, and provide common data interfaces for other smart factory production and information systems, connecting hardware and software and removing data silos.

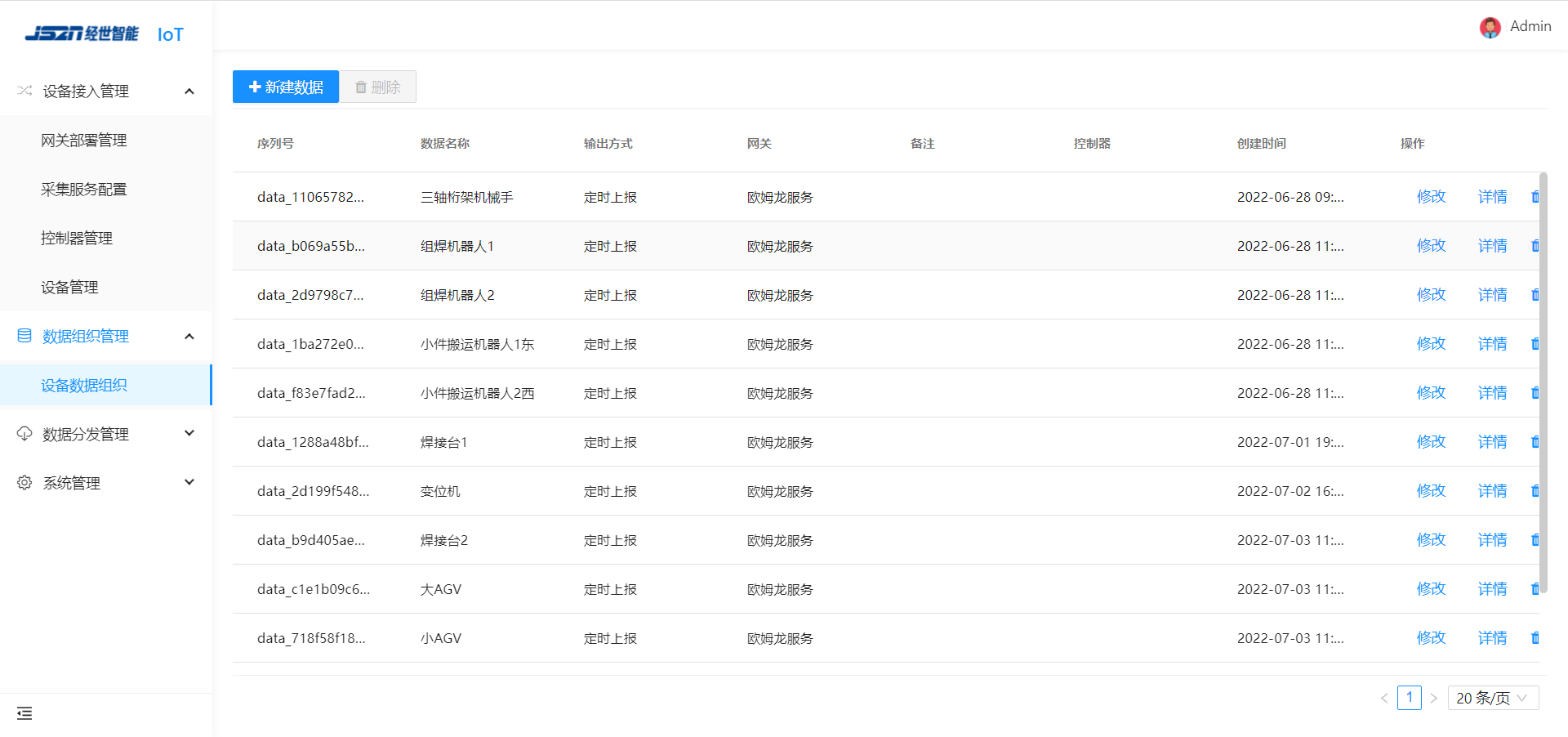

IoT — Data Organization

Organize equipment data

  • Create data
  • Edit
  • Details
  • Delete

Data fields

  • Serial number
  • Data name
  • Output method
  • Gateway
  • Notes
  • Controller
  • Creation time

Example sources

  • Three-axis gantry manipulator
  • Welding robots
  • Small-part handling robots
  • Welding stations
  • Positioner
  • Large and small AGVs

Output

  • Scheduled reporting
  • Acquisition-service gateway
View original interfaceIoT — Data Organization — original product interface

Data distribution

Define output fields from the data pool and integrate API data. Standardized API interfaces support connections to different systems.

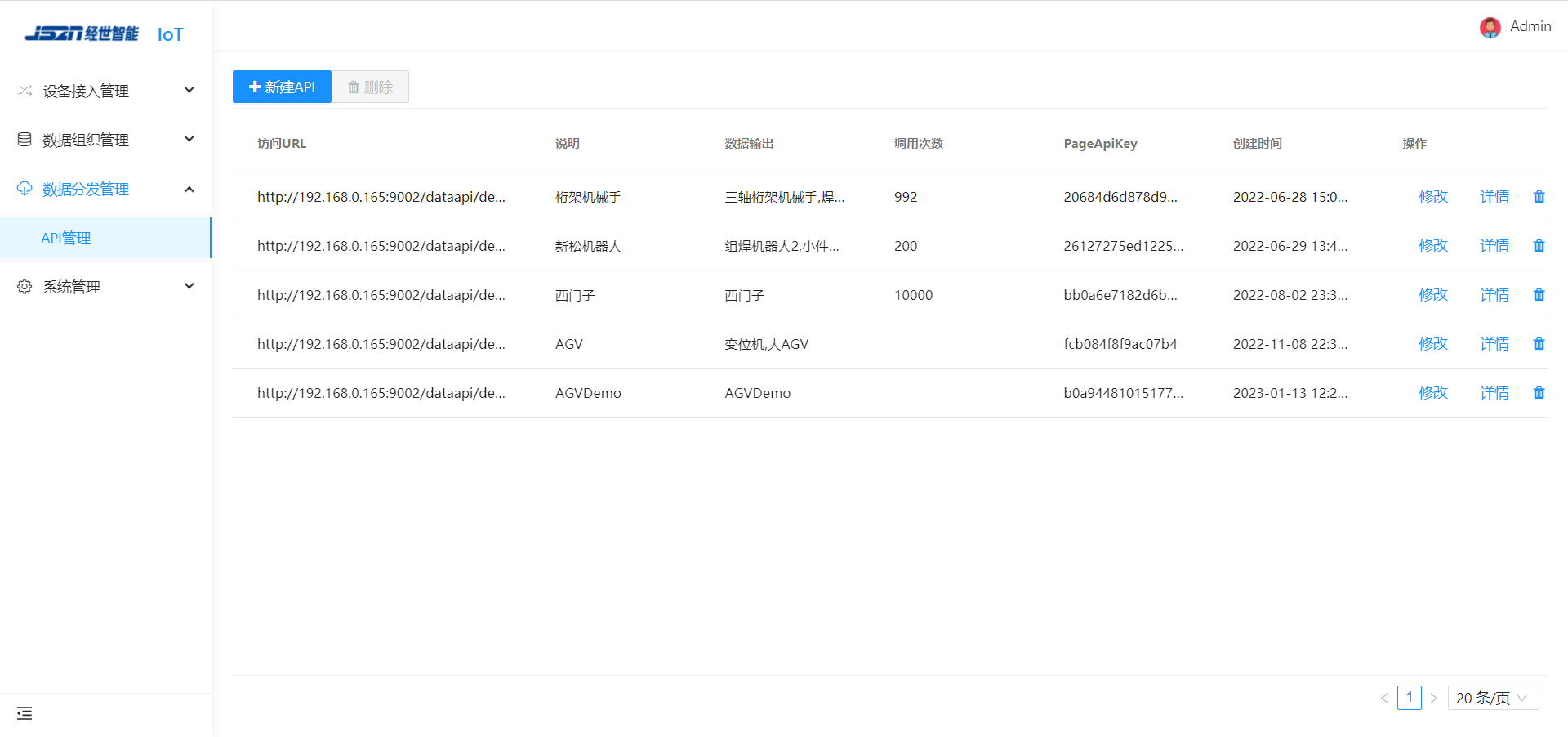

IoT — API Distribution

Manage APIs

  • Create API
  • Edit
  • Details
  • Delete

API fields

  • Access URL
  • Description
  • Data output
  • Call count
  • PageApiKey
  • Creation time

Example data feeds

  • Gantry manipulator
  • SIASUN robots
  • Siemens
  • AGV
  • AGVDemo

Connected workflow

  • Equipment access
  • Data organization
  • Data distribution
  • System management
View original interfaceIoT — API Distribution — original product interface

IoT platform architecture

IoT Platform Architecture

Applications

  • Visualization dashboards
  • Equipment synchronization
  • Equipment data mapping
  • Production analytics
  • Third-party systems
  • PC
  • Web
  • App

IoT platform

  • Controller management
  • Device management
  • I/O configuration
  • Data acquisition
  • Data integration
  • Data output

Storage

  • InfluxDB
  • PostgreSQL
  • Microsoft SQL Server
  • MySQL

Protocols

  • S7
  • FINS/TCP
  • HTTP
  • UDP
  • FANUC
  • OPC UA
  • Modbus TCP

Control

  • PLC
  • Robots
  • AMR
  • AGV
  • Instruments
  • Positioning systems
  • CNC machines

Equipment

  • Connected industrial equipment

Applications exchange data with the IoT platform. The platform exchanges data with storage and connects to equipment controllers through industrial protocols.
